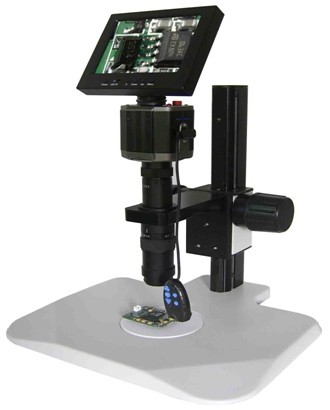

Video Microscope (BVM-20101)
Digital Video Microscope (BVM-20101)

Product Function Description:
High-resolution CCD sensor, built-in analog/digital converter, analog and digital signal directly display on the screen, can also simultaneously display on TV and computer through corresponding interfaces; taking photo and video through software; easy operation, reducing user's fatigue and injury.

Chinese and English operating software, high-speed USB2.0 interface, up to 480Mb/s
9.0M Camera, high quality image
Static image capture (JPG, BMP, GIF) and dynamic AVI image capture
Image: 640X480, 1280X1024, 2048X1536, video: 640X480 (25 f/s)
Software supports exposure time, chromatic aberration, brightness, contrast, saturation, etc image enhancement functions
Support Windows 2000 and XP operating systems.

Product Main Parameters:

Optical microscope: 0.7-4.5X micro zoom body with Detent, 0.5X coupler, 2X objective lens(outfit)
Magnification: 11-71X (changeable according to customer's need)
Monitor: 5 inch digital LCD (9.7 inch monitor for option), resolution: 640*480, with cross-line function
Imaging device: 1/2 inch COMS 9.0M sensor
Image resolution: 640X480, 1280X1024, 2048X1536
Video resolution: 640X480
Storage: SD card, support max. 4G(standard 1G)
Video output: BNC 75Ω
Video output format: PAL/NTSC, random setting
Operation: keyboard control, photo taking, video recording, playback, cancel, setting, etc.
Operating voltage: DC 12V
Lens adapter: C-mount adapter
Stand: 39mm track stand
