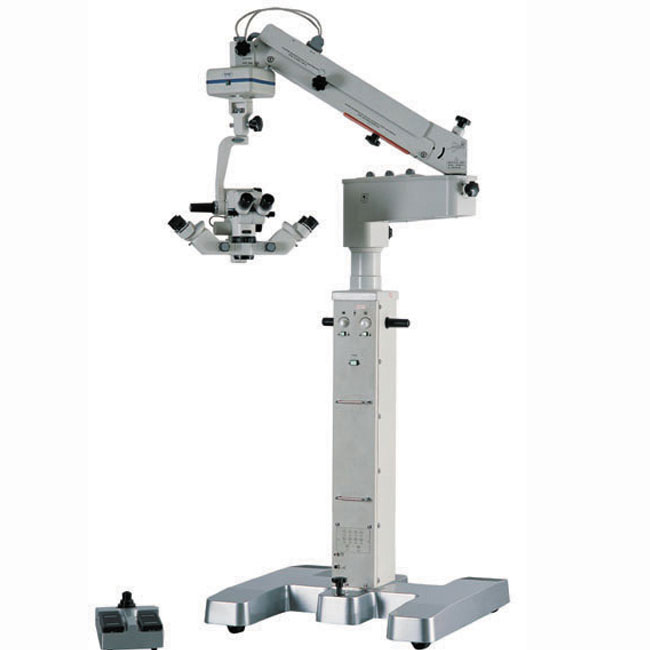

Integrated Operation Microscope (BOMM-6/C)

Product Details:

The BOMM-6/C is the only model in the family of BOM operation microscope which has a double assistant binocular system. It have perfect optics system and the biggest depth of field. It can be used in Neurosurgery, ophthalmology surgery, dentistry.

Specification:

Double assistant's binocular, new changing diaphragm give you perfect depth of field

Eyepieces: magnification 12.5x, pupil distance adjustable range 55mm~75mm, diopter adjustment range +6D ~ -6D. Focus of second object lens 180mm.

Binocular tube: 30°~90°variable angle binocular tube, add new pupil distance adjustment

Magnification: 6:1 zoom, motorized, magnification 4.5x~27.3x; field of view Φ45~Φ7.5mm

Coaxial assistant's binocular tube: manual 3-step changer, total magnification 6.4x,10.8x,17.3x; field of view Φ31mm, Φ19mm, Φ12mm

Coaxial illumination: illumination diameter of light spot Φ50mm, illumination intensity 100000lux

Objectives: f 200mm (175mm,250mm,300mm,350mm,400mm etc )

Focusing: motorized, range +/-25mm, speed 33s/whole distance

X-Y translator: move in X-Y direction motorised, range +/-30mm

Maximum length of arm:1200mm

Stand: swing angle of the carrier arm 0 ~300°,height from objective to floor 800mm

Foot switch: waterproof, 8 function steps

Weight:164kg
