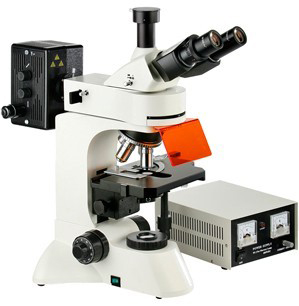

| Fluorescence Microscope (BFM-3006) |
BFM-3006 Epi-fluorescent microscope is used for fluorescence microscopy and transmitted bright field observation. It is
equipped with no magnification spherochromatic aberration infinity plan achromatic fluorescent objectives and wide field
eyepieces, has clear and high contrast picture in your wide view field. The main body design meets with the ergonomics
needs and makes you feel comfortable and relaxed in process of operation. It is the ideal instrument in biology,
cytology, oncology, genetics, immunology etc. It also can be used in scientific research, universities, medical
treatment, epidemic prevention etc.
¡ø Adopt infinity optical system and modularization function design
¡ø Equipped with infinity plan achromatic fluorescent objectives, enable obtain more clearer and brighter image
¡ø Wide-field plan eyepieces: field number §¶22mm
¡ø Coaxial coarse/fine focus system, with tension adjustable and limit stopper , minimum division of fine focusing: 2μm
¡ø Transmitted illumination system: Integrated field diaphragm and 6V30W halogen lamp, adding radiator and
brightness control
¡ø Epi-illumination system: 100W/DC mercury lamp. The voltage of power supply is 220V or 110V
¡ø Trinocular can be observation for eyepieces and microphotography in 100% light flux, suits for low illuminance
microphotography
|
Model
|
BFM-3006
|
|
Eyepiece
|
Wide field WF10X(¦µ22mm)
|
|
Objective
|
Infinity plan achromatic objectives
|
|
PL 4X/0.10 (Work distance): 19.8 mm
|
|
PL 10X/0.25 (Work distance): 5.0 mm
|
|
PLF L40X/0.85£¨spring£©(Work distance): 0.42mm(No magnification spherochromatic aberration )
|
|
PL 100X/1.25(Spring, oil) (Work distance): 0.36mm
|
|
Eyepieces tube
|
Trinocular, Inclination of 30˚.
|
|
Epi-fluorescent illumination system
|
Power supply unit, 110V or 220V can be selected.
|
|
Mercury lamp is 100W/DC
|
|
Turnplate Epi-fluorescence illuminator (UV.V.B.G filters system)
|
|
Focus system
|
Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm.
|
|
Nosepiece
|
Quintuple(Backward ball bearing inner locating)
|
|
Stage
|
Double layer mechanical (Size:210mmX140mm,movingrange:75mmX50mm)
|
|
Transmitted illumination
system
|
Abbe condenser NA.1.25 Rack & pinion adjustable
|
|
Blue filter and Ground glass
|
|
Collector for halogen lamp illumination and integrated field diaphragm
|
|
6V 30W halogen lamp, adjustable brightness
|
Optional Accessories
|
Name
|
Sort/Technique parameter
|
|
Eyepiece
|
Dividing eyepiece(field number:¦µ22mm) 0.10mm/Div
|
|
Objective
|
Infinity plan achromatic objective PL 60X/0.80(Work distance): 0.46 mm
|
|
Infinity plan achromatic fluorescent objective
PL FL10X/0.35(Work distance): 2.37 mm
|
|
Filter
|
Green filter
|
|
Yellow filter
|
|
CCD adapter
|
0.4X
|
|
0.5X
|
|
1X
|
|
0.5X with dividing 0.1mm/Div
|
|
Camera
|
DV-1 Video output(380/520 TV line) USB output(0.42 M pixel)
|
|
DV-2 With USB output (1.3M,2.0M,3.0M pixel)
|
|
DV-3 With video output(380/520 TV line)
|
|
Digital camera adapter
|
CANON(EF) NIKON( F)
|
|
