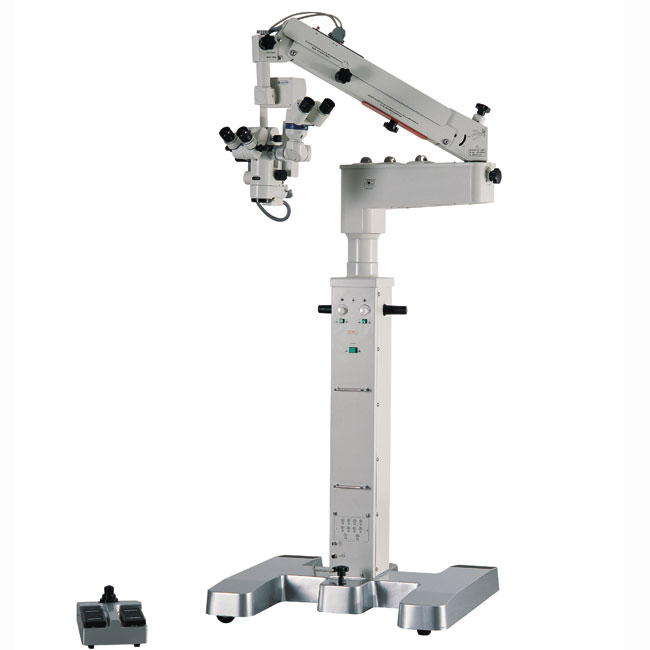

| E.N.T Operation Microscope (BOME-5/B) |
Product Details:
The only full motorised model in the family of BOME operation microscope. It can focus motorised, zoom motorised and change the visual angle motorised. The visual angle can stay in any angle you need. It is very convenient for E.N.T and Neurosurgery.
Specification:
Eyepieces: magnification 12.5x, pupil distance adjustable range 55mm~75mm, diopter adjustment range +6D ~ -6D. Focus of second object lens 180mm.
Binocular tube: 30°~90°variable angle binocular tube, add new pupil distance adjustment
Magnification: 6:1 zoom, motorized, magnification 3x~16x; field of view Φ74~Φ12mm
Coaxial assistant's binocular tube: all direction circumvolve freely, magnification 3x~16x; field of view: Φ74~Φ12mm
Coaxial illumination: illumination diameter of light spot Φ78mm, illumination intensity 100000lux
Objectives: f300mm (200mm, 250mm,350mm,400mm etc )
Focusing: motorized, range +/-25mm, speed 33s/whole distance
X-Y swing: The head can swing in X direction +/-45 °motorised, and in Y direction +90°,and can stop in any angle
Maximum length of arm: 1200mm
New stand: swing angle of the carrier arm 0 ~300°, height from objective to floor: 800mm
Foot switch: waterproof, 8 function steps
Weight: 164kg |
